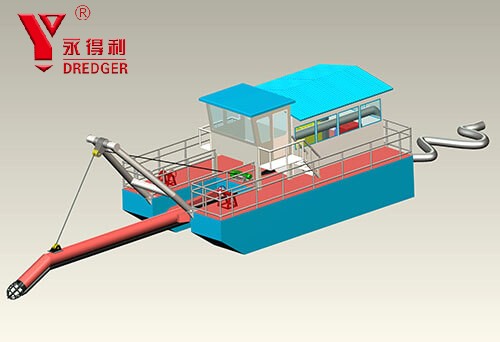

JET SUCTION DREDGER

Product Features:

1. Jet suction sand dredger is applied for inland waterways, lakes and coastal areas where sand layer is soft for dredging work.

2. The high pressure water jet will break the sand layer first, then sand pump will suck up the solids and discharge then onshore or to the transportation boat.

3. Customized according to dredging depth, working capacity and discharge distance.

4. Main diesel engine provides power to sand dredging pump and auxiliary diesel electricity generator supplies electricity to high pressure water pump, winches and lighting system.

Technical Parameter
Model	Flow（m³/h）	Power（kw）	Depth（m）	Discharge distance（m）	Suction/Discharge Dia.（inch）
YLSX-500	500	150~300	1~25	≤500	8/6
YLSX-1000	1000	200~500	1~25	≤500	10/8
YLSX-2000	2000	300~600	1~25	≤1000	14/12
YLSX-3000	3000	500~900	1~25	≤1000	16/14

We also can supply others upon customer’s request.

For any solution or price, please inform us:
1. the required work capacity of water flow per hour
2. the max. dredging depth
3. the discharge distance

4. the brand of diesel generator

5. 5. other special requirements
