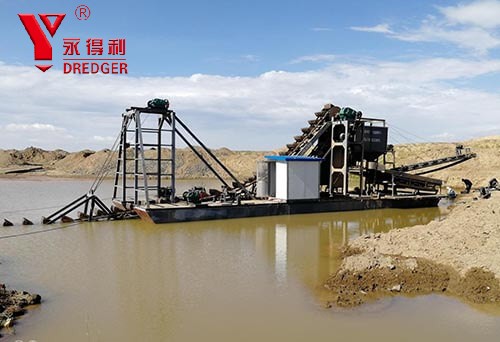

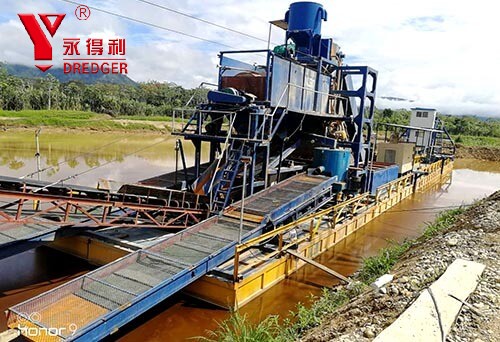

BUCKET CHAIN GOLD DREDGER-Gold dredger-

BUCKET CHAIN GOLD DREDGER

Product Features:

1. The dredger could be divided into bucket type and pump suction type. Bucket type dredger is applied for waterways with high percentage of clay and gravels, while pump suction type can only be used for terrains with low percentage of clay and gravel.

2. Customized according to specific requirements for dredging depth and capacity.

3. Iron ore needs to be retrieved first with magnetic separator if the percentage is high in the raw ore, then gold, diamond, zirconium will be concentrated.

4. The dredger is composed of several gravity concentrators. The concentration ratio could reach as high as 1:1000, and the recovery efficiency about 90% after series of separator.

Technical Parameter
Model	Capacity（t/h）	Power（kw）	Water consumption（m³/h）	Depth（m）	Recovery
Model	Capacity（t/h）	Power（kw）	Water consumption（m³/h）	Depth（m）	Recovery
YLC-100	100	65-100	100-200	1~25	85-90%
YLC-150	150	82-120	150-250	1~25	85-90%
YLC-200	200	97-150	200-300	1~25	85-90%
YLC-250	250	108-200	250-400	1~25	85-90%

We also can supply others upon customer’s request.

In order to supply our solution and quotation, please inform us:

1. the max. dredging depth

2. your required work capacity

3. other special requirements or river terrain report
