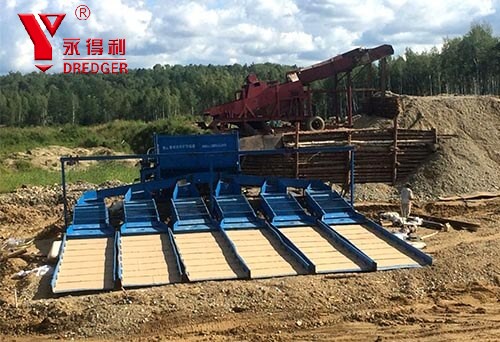

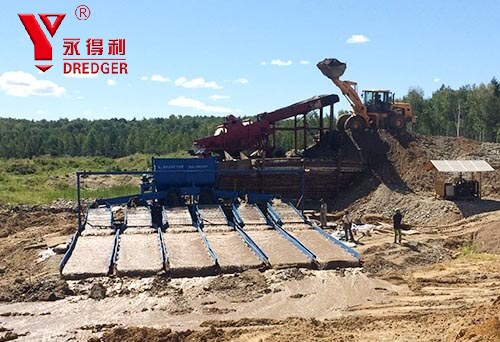

GOLD WASHING PLANT-Gold washing plant-

GOLD WASHING PLANT

Product Features:

1. Could be used to mine gold mixed with sand in palaeochannel, palaeo-riverbed, alluvial placer, tailing after ball milling, and diamond and zirconium in raw ore.

2. Iron ore needs to be retrieved first with magnetic separator if the percentage is high in the raw ore, then gold, diamond, zirconium will be concentrated, or the effectiveness will be affected.

3. This set of mining equipment are composed of several gravity concentrators. The concentration ratio could reach as high as 1:1000, and the recovery efficiency about 90% after series of separation.

Technical Parameter
Model	Capacity（t/h）	Power（kw）	Water consumption（m³/h）	Particle size（mm）	Recovery
YLH-100	100	92	200	≤300	90%
YLH-150	150	100	300	≤300	90%
YLH-200	200	106	400	≤300	90%
YLH-250	250	118	500	≤300	90%

We also can supply others upon customer’s request.

In order to supply our solution and quotation, please inform us:
1. required work capacity per hour?
2. ratio of sand and stone? Any clay? And if there are mud in the clay?
3. gold content or gold particle size

4. other information about work site

5. for the diesel generator,Do you prefer weichai or Cummins?
